Mphi Equine Orange

Orange in colour and increased power for the specific device for equine


Therapeutic programmes especially for treating the ailments that affect horses, can be customized thanks to new software which allows you to modify the treatment parameters of the set protocols and create your own.

A new power of 75 W and average power up to 1.2 W to penetrate deep into the tissues enabling to act on the pain in a more immediate way, promoting the photomechanical effect, speeding up the anti-oedema effect and encouraging the activation of cellular repair processes. All this in complete safety.

Mphi Equine Orange, among the most innovative medical veterinary equipment, is an effective tool for the veterinary surgeon seeking a device which enables them to reach every part of the body which needs treatment with ease and precision also thanks to technologically advanced accessories. The multidiodic applicator CHARLIE which reaches up to 3.6 W with a peak emission of 75 W, in fact, allows coverage of a 5 cm diameter Target Area, making it easier to treat large areas of the body, favouring muscular relaxation of the surrounding areas and reducing treatment times.



Technical features

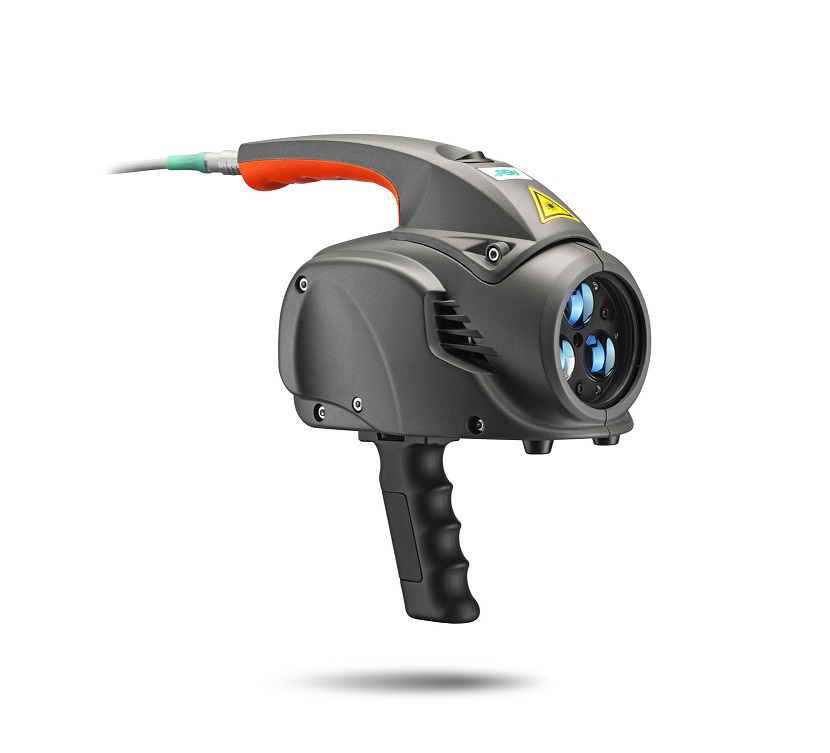

  • Multidiode applicator Charlie with optical group composed of 3 MLS® sources with power up to 3.6 W - Peak power 3 x 75 W
    Target Area Ø 5 cm highlighted by high-efficiency red light LEDs

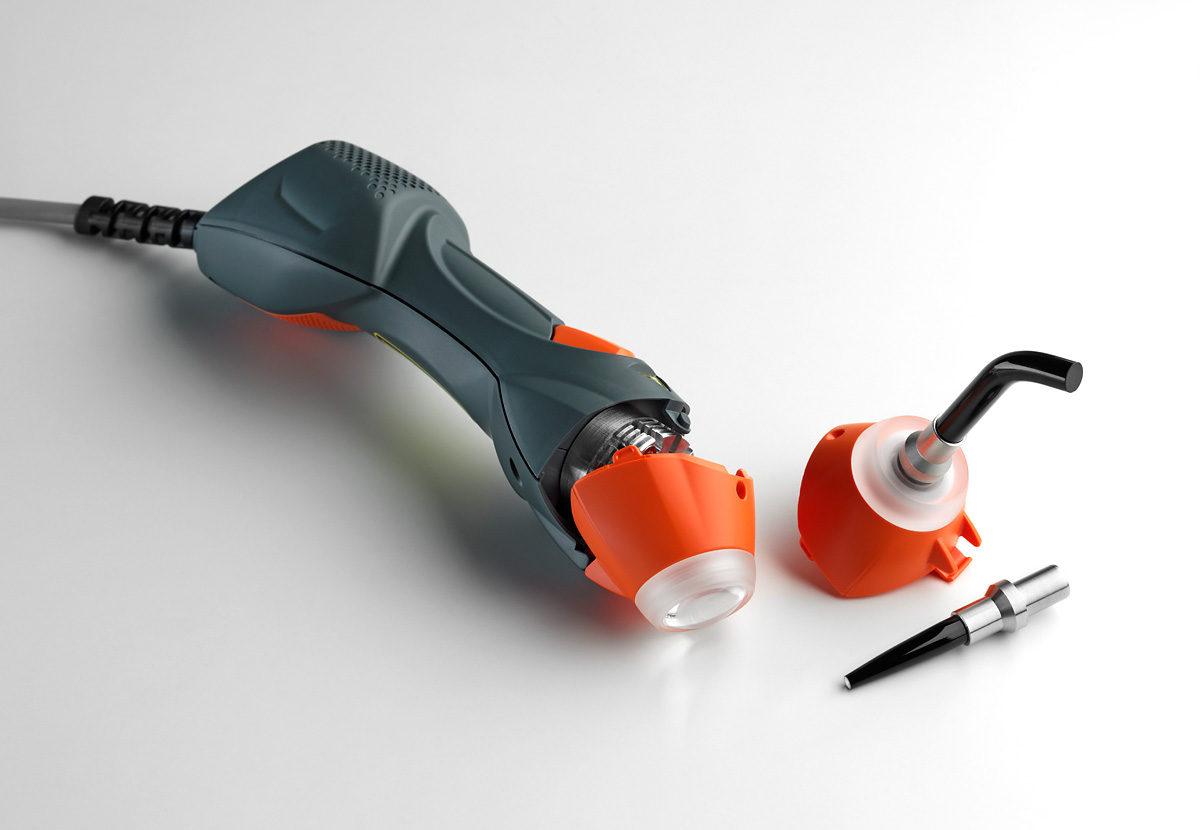

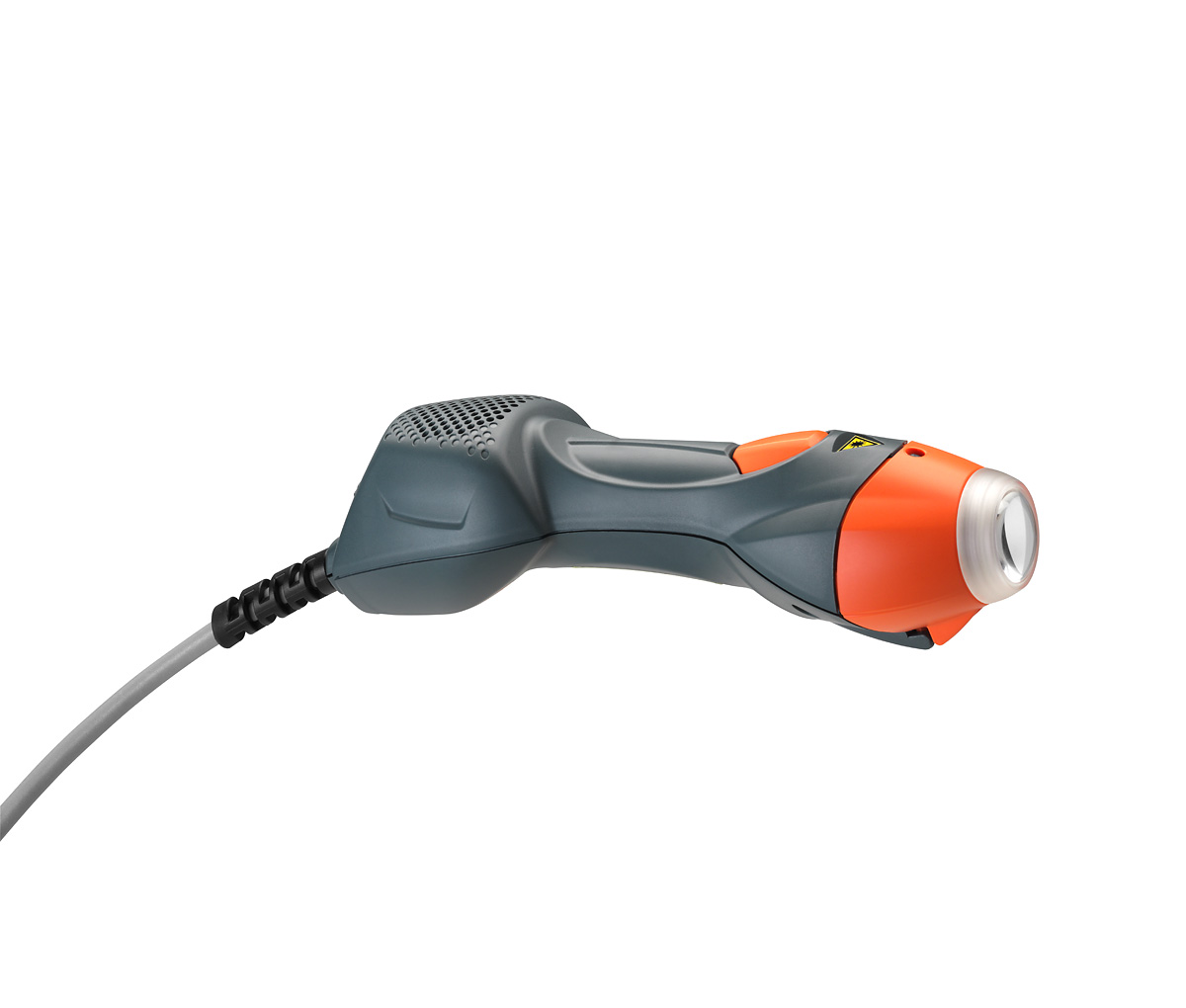

  • Handpiece with optical group composed of 1 MLS® source - power up to 1.2W - Peak Power 75 W
    Target Area Ø 2 cm highlighted by high-efficiency red light LEDs
  • High resolution LCD colour touch screen user interface
  • Simultaneous management of two independent channels
  • 20 pre-settled programs for Dogs and Cats
  • 21 pre-settled programs for Equine
  • 41 pre-settled programs for Exotic Animals parted in Reptiles, Birds and Mammals
  • Program section for Laser puncture
  • Program section for Intraoral pathologies
  • Possibility to customize every treatment parameter
  • Personal Area to save custom protocols
  • MLS® modulation in CPW and FPW mode (Synchronized emissions of Continuous Pulsed Waves and Frequenced Pulsed Waves)
  • Modulation frequency from 1 to 2000 Hz with 1 Hz steps
  • Power level 25%, 50%, 75% and 100%
  • Variable or fixed duty cycle
  • Treatment duration from 1” to 99’59” with 1” steps
  • Automatic calculation of the emitted energy according to the settled parameters

Alarms and safety features

  • Laser emission warning light
  • Interlock
  • Acoustic signal selectable by operator
  • Date and time
  • Password to operate the device
  • Language option
  • Ready to be connected to the remote Laser emission signalling device

Included Accessories

  • Laserpuncture kit
  • Light guide for Intraoral Pathology Treatment
  • N° 2 Laser Safety Goggles
  • Unit carrying case
  • Table handpiece holder
  • Shoulder strap for portable use

Size and weight

  • Mphi Vet Orange 36 x 28 x 10 cm; 3 kg
  • Charlie Orange 11 x 16 x 25 cm; 1 kg

Power supply

  • Lithium polymer battery
  • External power supply 18Vdc 50VA
